Flat Countersunk Head Rivet Engineering Size Chart
AMERICAN STANDARD SMALL SOLID RIVETS
For a comprehensive set of specs, see ANSI/ASME Standard #ASME B18.1.1-1972 (R1995)
All units in Inches

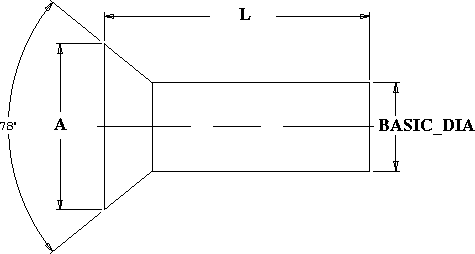

Flat Countersunk Head Rivet
| BASIC DIAMETER | A Head Diameter |
| .5 | 0.9360 |
| .625 | 1.1940 |
| .75 | 1.4210 |
| .875 | 1.6470 |
| 1 | 1.8730 |
| 1.125 | 2.1140 |
| 1.25 | 2.3400 |
| 1.375 | 2.5670 |
| 1.5 | 2.7930 |
| 1.625 | 3.0190 |
| 1.75 | 3.2620 |
