Scissor Lift Jack Force Bottom Load Calculator

Mechanics Machines Menu
Scissor Lift Companies

Open webpage with mathematical proof (Equations and Calculators updated: April 20, 2012).

Open: Scissor Lift Jack Force Bottom Load Proof and Equations

A scissors lift uses linked, folding supports in a criss-cross 'X' pattern, known as a pantograph. The extension is achieved by applying pressure to the outside of a set of supports located at one end of the lift, elongating the crossing pattern. This can be achieved through hydraulic, pneumatic, mechanical or simply muscular means.

It may require no power to return to its original position, but simply a release of the original pressure.

Scissor Lift Jack Force Bottom Load Proof and Equations


  Scissor Lift Center Loaded Force Calculations
  Variables
  Payload & Platform W (N, lbs) =
  Angle Φ (Degrees)=
  Results
  Force for Equilibrium at Load Rx (N, lbs) =
  Load Ry (N, lbs) =

Model created with 2D Static's Modeler and Loads Calculator (Premium Membership Only)

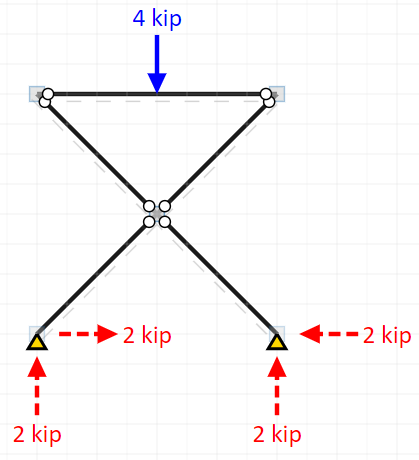

Scissor Lift Bottom Loaded Example

Scissor Lift Bottom Loaded Example
