Buckling of Partial Cylinder Plate Calculations

Mechanics of Materials Menu
Pressure Vessel Design and Calculators

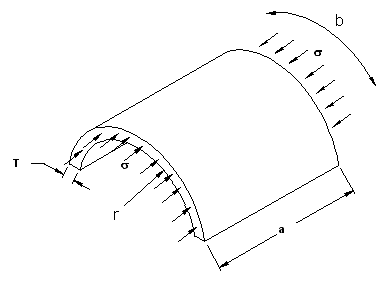

This calculator will determine the buckling stress of simply supported partial cylinder (curved) plate. Radius is assumed to be uniform.

Reference: Roark's Formulas for Stress and Strain, Seventh Edition.

buckling stress

    Radius
r =
mm

    Arc Length of Plate
b =
mm

  Thickness of Plate
t =
mm

    Modulus of Elasticity
E =
Mpa

    Poissons ratio
n =


    If a > b, then the solution does not depend on a
    Buckling stress
σ1 =


    Compare with flat plate solution
σflat =


    Note: if b/r is less tha 0.5 and b and a are nearly equal
σ'2 =
