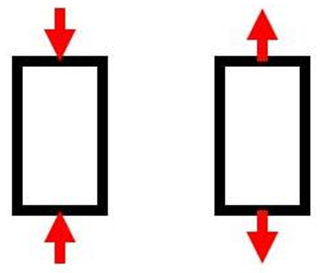

Axial Load Capacities for Single Plates: Based on Gross Section Loaded Uniformly in Either Tension or Compression per AISC 9th Edition Manual (ASD)

Axial Load Capacities for Single Plates Engineering Calculators

Input:
Fy = ksi Fy = yield stress
Lc = in.?? Lc = unbraced length for compressive buckling
K =   K = effective length factor for compression

Gross Uniform Tension Capacites for Single Plates (kips)
Plate Ht., Plate Thickness, tp (in.)
Hp (in.)

Gross tension capacity of plate:? Rt = Ft*Ap
where: Ft = 0.60*Fy? and? Ap = Hp*tp

Gross Uniform Compression Capacites for Single Plates (kips)
Plate Ht., Plate Thickness, tp (in.)
Hp (in.)

Compression (buckling) capacity of plate:? Rc = Fa*Ap
where: Ap = Hp*tp
  r = tp/(SQRT(12))? (radius of gyration for minor axis of plate)
  KL/r = K*Lc/r? (slenderness ratio)
  Cc = SQRT(2*p2*29000/Fy)
  If? KL/r <= Cc? then? Fa = (1-(K*Lc/r )2/(2*Cc2))*Fy/(5/3+3*(K*Lc/r)/(8*Cc)-(K*Lc/r)^3/(8*Cc^3))
  If? KL/r > Cc??? then? Fa = 12*p2*29000/(23*(K*Lc/r)2)
